Toyota

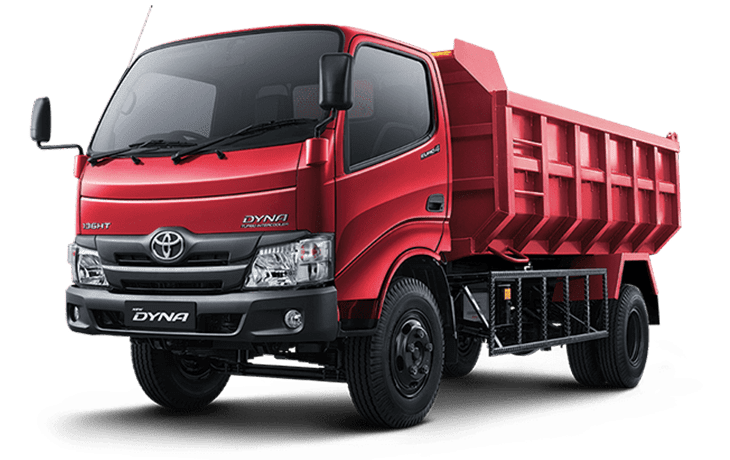

New Dyna
Truck · 4000 cc · Solar · 3 penumpang
Rp 377.300.000
Harga sewaktu-waktu dapat berubah
Pilihan Warna
Red
Tipe & Harga
| Tipe | Harga OTR Bandung |
|---|---|
| 115 ST 4x2 5MT (Spot Order*) | Rp 377.300.000 |
| 136 HT HI-Gear 4x2 6MT (Spot Order*) | Rp 461.000.000 |
| 136 HT HI-Gear 4x2 6MT (PTO) (Spot Order*) | Rp 465.000.000 |
Spesifikasi
Dimensi
- Overall Panjang / Length (mm)
- 4.745
- Overall Lebar / Width (mm)
- 1.717
- Overall Tinggi / Height (mm)
- 2.118
- Jarak Sumbu / Wheelbase (mm)
- 2.530
- Overhang Depan (mm)
- 1.066
- Overhang Belakang (mm)
- 1.149
- Jarak Pijak Depan / Front Tread (mm)
- 1.415
- Jarak Pijak Belakang / Rear Tread (mm)
- 1.420
- Gross Vehicle Weight (kg)
- 5.400
Mesin
- Mesin / Engine
- NO4C-WV
- Tipe Mesin / Engine Type
- DIESEL 4 STROKE-INLINE
- Isi Silinder / Displacement (cc)
- 4.009
- Diameter x Langkah / Bore x Stroke (mm)
- 104 X 118
- Sistem Bahan Bakar / Fuel System
- DIRECT INJECTION
- Sistem Pemasukan Udara / Intake System
- TURBO CHARGER WITH INTERCOLLER
- Daya Maksimum / Maximum Power (ps/rpm)
- 115/2.500
- Torsi Maksimum / Maximum Torque (kgm/rpm)
- 36/1.200 - 2.200
- Exh. Emission
- EURO-4
- Kapasitas Tangki / Fuel Tank Capacity
- 100
Rangka
- Model Transmisi / Transmission Model
- RE50
- Tipe Transmisi / Transmission Type
- 5 MT
- Perbandingan Gigi / Gear Ratio (1st)
- 5.342
- Perbandingan Gigi / Gear Ratio (2nd)
- 2.975
- Perbandingan Gigi / Gear Ratio (3rd)
- 1.604
- Perbandingan Gigi / Gear Ratio (4th)
- 1.000
- Perbandingan Gigi / Gear Ratio (5th)
- 0.712
- Perbandingan Gigi Mundur / Reverse Gear Ratio
- 4.970
- Perbandingan Gigi Akhir / Final Gear Ratio
- 4.625
- Sistem Kemudi / Steering System
- Recirculating Ball Screw dengan Power Steering
- Tilt & Telescopic
- Tilt-Telescopic with Manual Lock
- Suspensi Depan / Front Suspension
- Rigid Axle with Semi Elliptic Leaf
- Suspensi Belakang / Rear Suspension
- Rigid Axle with Semi Elliptic Leaf
- Rem Kaki Depan / Front Main Brake System
- Two Leading Shoe with Vacuum
- Rem Kaki Belakang / Rear Main Brake System
- Dual Two Leading Shoe with Vacuum
- Rem Pembantu / Exhaust Brake
- with Exhaust Brake
- Rem Tangan / Parking Brake
- Internal Expanding with Transmission Output Shaft
- Ukuran Ban / Tire Size
- 7,50-15-14PR
- Sistem Listrik Baterai / Battery Electrical System
- 12V - 100 AH
- Sistem Listrik Stater / Starter Electrical System
- 12V - 2,7 kW
- Sistem Listrik Alternator / Alternator Electrical System
- STD: 12 V - 80 A, OPT: 12 V - 130 A
- Kabin Jungkit / Tilt Cabin
- With
- Kursi Berbaring / Reclining Seat
- With on Driver Seat
- Kursi Geser / Sliding Seat
- With on Driver Seat
- Daya Lepas / Power Take Over
- Without
